1911 Type "Universal Mount" Big White Dot/Tritium Sight?

~JM~
[subject]
Wednesday, March 04, 2020, 20:56 (2364 days ago)

Is there a Big Dot/Tritium front sight that has a slot cut into the underside to fit over an existing fixed front sight blade? Place over original sight & perhaps drill through for a roll pin to affix.

I would like to improve the front sight on a Star PD. I don't know if cutting a dovetail into the top of the slide would be wise.

Thanks.

Try white fingernail polish

Alcorn
[subject]
Thursday, March 05, 2020, 04:26 (2364 days ago) @ ~JM~

- No text -

I spoke ot Kase once about that.

WB
[subject]
Thursday, March 05, 2020, 10:05 (2363 days ago) @ ~JM~

He thought the slide was a little thin for that and it might get into the inner channel for the barrel making more work than it was worth.

Seriously, a little application of some high viability paint is a great remedy. Alcorn's suggestion has validity.

we have cut sight inserts in a lot of PDs in the past

Gary Reeder
[subject]
Thursday, March 05, 2020, 11:49 (2363 days ago) @ ~JM~

and never had any problems.It looks like crap but works. I have them in green, red and this one in the glow in the dark mixture. If you go with a cap over the original sight blade it will probably shoot real low. If you cut a dovetail into the slide you would probably hit into the bushing. So your options are few on the PD. These modifications of the PD front and rear sight are mickey mouse but they work and I can mix up some of the sight insert mixture and change them when I need to.

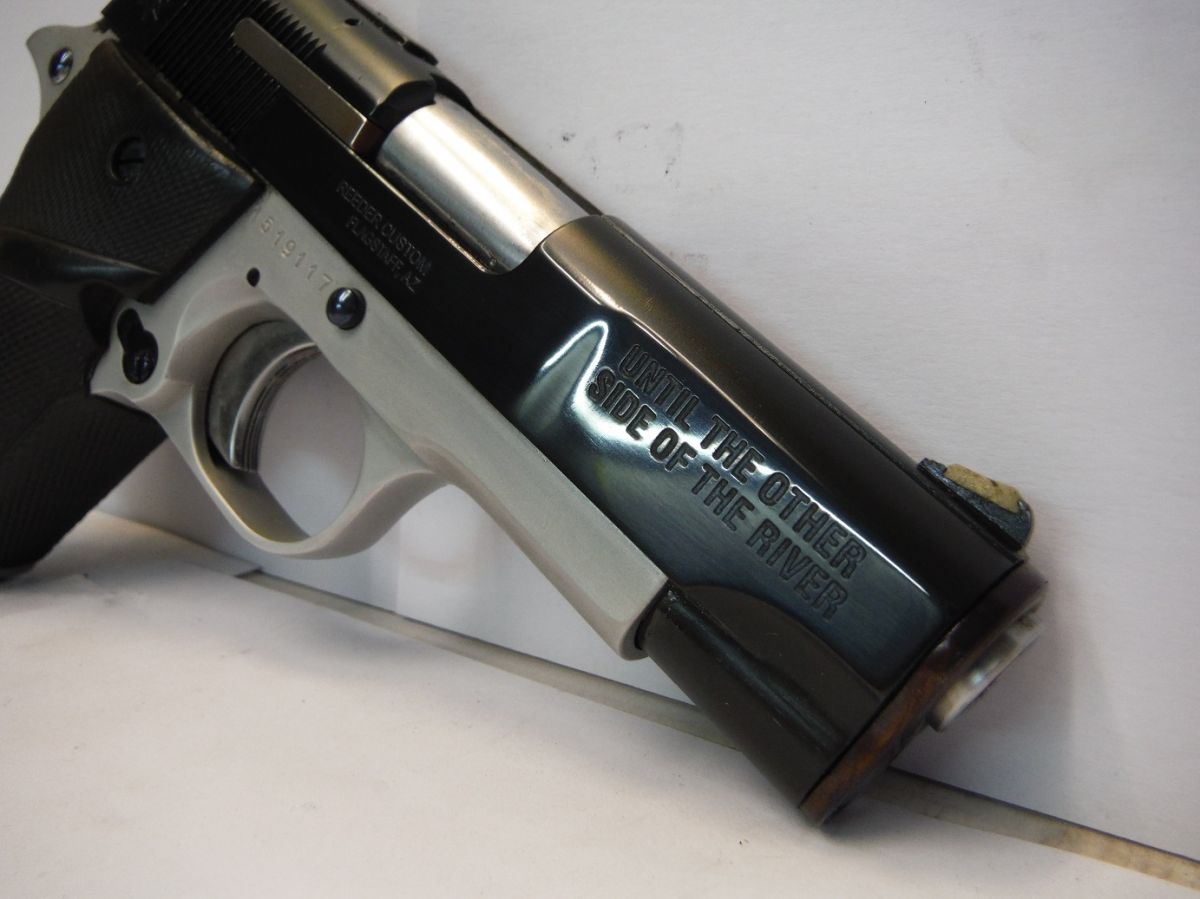

Here is my PD I keep by the bed with the glow in the dark blob in the front sight.
[image]

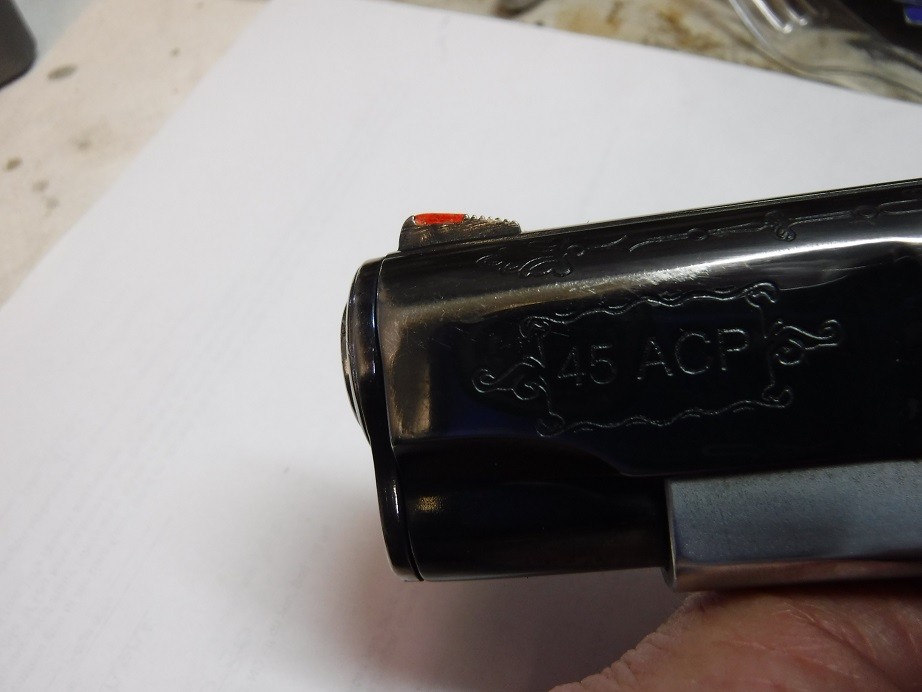

Here is the one I carry with a red insert cut into the front sight.
[image]

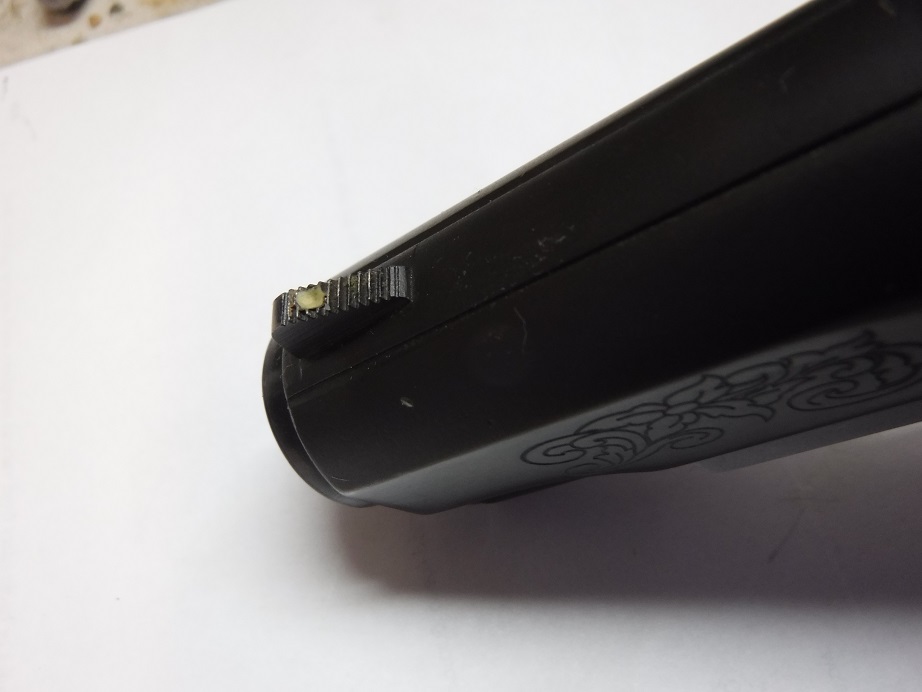

On Colleen's PD I drilled a small hole in the front sight and put a dab of the glow in the dark liquid in it.
[image]

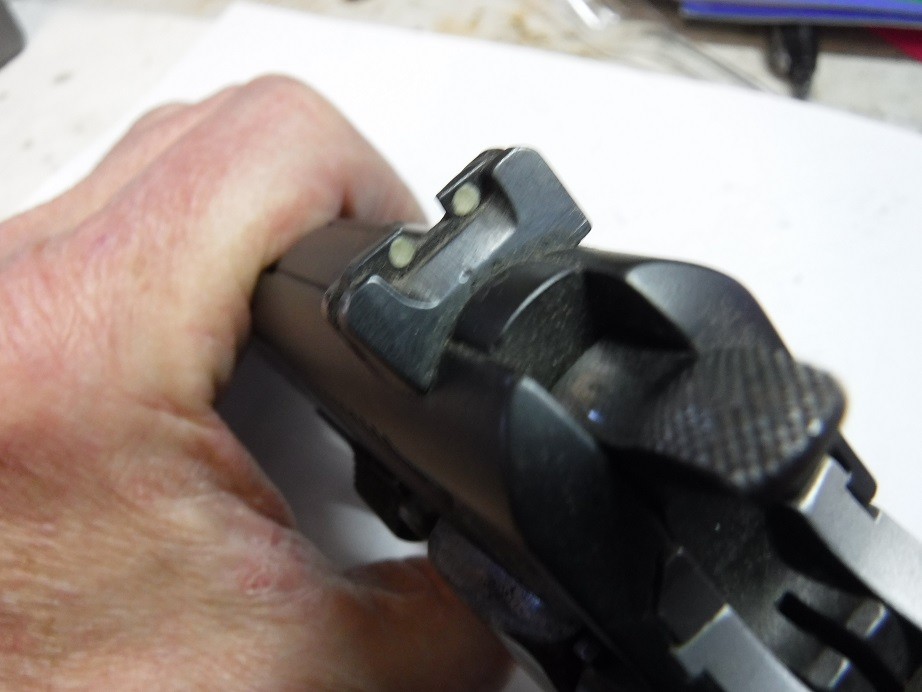

then I drilled two small holes in her rear sight (she has the newer model of PD with the solid type rear sight) and put some of the glow in the dark liquid in the 2 holes.
[image]

Drilling Holes...

~JM~
[subject]
Thursday, March 05, 2020, 14:34 (2363 days ago) @ Gary Reeder

Looks like a good solution.

Perhaps This Might Work?

~JM~
[subject]
Thursday, March 05, 2020, 14:29 (2363 days ago) @ ~JM~

https://www.xssights.com/Detail.aspx?PROD=993580&CAT=13160

https://www.xssights.com/ITEMMEDIA/10045/Ruger%20LCR%20Installation.pdf

https://www.xssights.com/Detail.aspx?PROD=1025220&CAT=8375

https://www.xssights.com/ITEMMEDIA/10045/SW%20J-Frame%20Fixed%20Installation.pdf

Would require a radius machined into the bottom of the sight base & then cutting the original sight into a mounting post. Lot of work & I don't know if the elevation would be within range.

Brightly colored fingernail polish, eh?
