A useful chart for die bits
Wednesday, June 24, 2020, 12:10

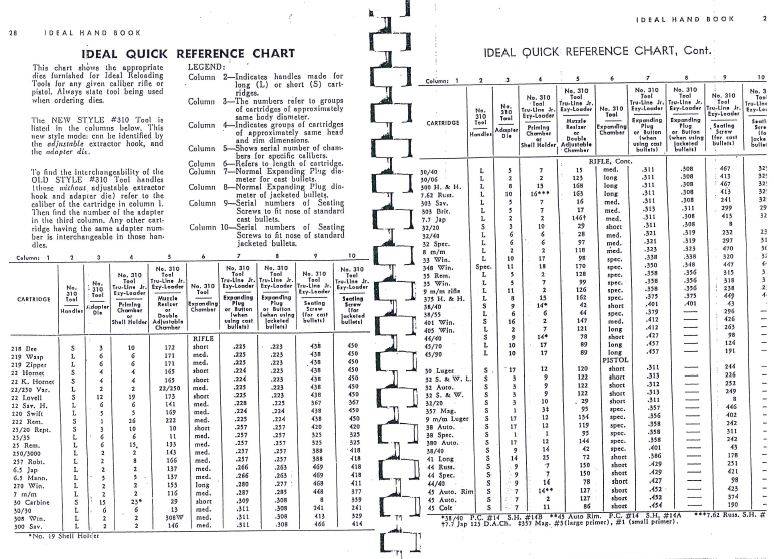

It's not uncommon to find individual dies and the folks don't know what they go to. They are numbered and this chart has some f that info.

I have a .45 ACP die set and it shares the priming die with any .30-06 type case head, several dozen rounds all use the same primer etc. I think I can load .45 Colt with it using a #11 Primer die.

Of course you too can find all this info online with a little searching.

[image]

Handloading .. by hand - Jim Taylor, 2020-06-24, 07:43
- Now I'm looking for one. Thanksfor the history lesson. (nm) - Sid R, 2020-06-24, 08:51
- Very cool Jim. I’m playing with them - WB, 2020-06-24, 08:05
  - I had it backwards .. #3 was for rimmed .. - Jim Taylor, 2020-06-24, 08:43
    - A useful chart for die bits - WB, 2020-06-24, 12:10
