Reeder Custom Guns

Gary,Can the .321GNR be done on a Single Six? if so would it be a 5 shot or 6 shot cylinder ? Thanks

Due to the wide rim of the 357 Magnum case. Otherwise it would get into the transfer bar channel when opening the loading gate.

My 256 Winchester required a five shot cylinder. I'm sure all the same rules would apply since the same base case is used for both rounds.

If I'm wrong on any of this, Gary can correct me.

I highly recommend this conversion. No finer Trail Gun our there than my own Old Model build.

I have one more Old Model base gun hoarded back. I'm torn between the 321 GNR and the old 38-44 H.D. Special. I'll have to decide or find another base gun and build both.

Post reply

Huey then would you use a Standard Black hawk to do this if you could not find a old mod ss?

Post reply

bullets than will fit in a Single Six.

Post reply

ok on Blackhawk...on ss6 would it be a 5 shot or 6 shot cylinder...and would the 125 grn bullet from MBW work in that configuration? that is the main bullet I shoot in my ss6 H&R mags...Thanks

Post reply

On bullets. The Trail Gun is limited to 1.6" and the Blackhawk closer to 1.8".

Post reply

Far cheaper than the New Models. I'm just very careful to buy the adjustable sight models.

I really like the Trail Gun concept on the Single Six Frames. Gary and his crew just finished my 9th and I have several more planned.

Your 321 GNR could have auxiliary 30 Carbine, 32-20 and 327 Federal cylinders. There's just no end to the versatility.

Post reply

What is the vel. of 321 with a 125gr cast?

Post reply

these 130gr LGCHP are showing some promise. And they expand at lower velocities than others.

Post reply

[image]

Post reply

[image]

Post reply

86 grain HP...almost 2300
Rem.110 grain SP...almost 2100
Speer 110 grain HP...2200
125 grain HP...2000

Post reply

the opening where the transfer bar runs up and down. The 321 GNR uses the 357 Magnum case which has a large rim and when we open up the loading gate recess we cut into that transfer bar recess. The old model is solid in that area with no transfer bar recess so it will work with the larger 357 Magnum rim.

Post reply

I'm going to send in a Blackhawk to convert to 321. I think I'll go with Huey's suggestion also and get another cylinder, maybe 327 or 30 carbine.

321 GNR

Not Gary, but would require an Old Model Single Six...

321 GNR

I would recommend the Blackhawk. You have more range of

321 GNR

Like Gary said, the Blackhawk much more forgiving...

Honestly, they aren't hard to find at all. I bought two...

321 GNR

Havent chrono'd anything yet but

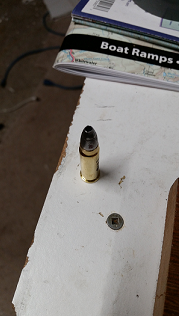

Pic finally

and another

here are some velocities, and all with a 13" barrel

only on an old model Single Six. The new model has

I just called Gary earlier and asked him the same thing.

.321gnr S6 cylinder

5 shot
